Ugh, that sinking feeling when you strip a spark plug hole – I know it well. Believe me, a good quality spark plug hole repair kit is your absolute best friend in that moment. I’ve been there, staring at a cross-threaded cylinder head, and I learned the hard way about choosing the right one. My laboratory and garage have seen countless hours dedicated to evaluating these kits, scrutinizing their material science, engineering tolerances, and real-world application.
My expertise stems from a career steeped in mechanical engineering, focusing specifically on powertrain components and their maintenance. I’ve personally undertaken exhaustive testing of various spark plug hole repair kits, meticulously assessing their cutting performance, thread integrity, and long-term durability under simulated and actual engine conditions. This isn’t just about turning a wrench; it’s about understanding the metallurgy of the tap, the tensile strength of the inserts, and the geometric precision required to restore a critical sealing surface within an engine’s combustion chamber. The objective is not merely to get a spark plug back in, but to ensure a gas-tight seal and prevent further catastrophic failure. What follows is a technically detailed examination, grounded in scientific observation and hands-on testing, of five prominent kits on the market, aiming to provide a definitive guide for anyone facing this common, yet often daunting, automotive repair.

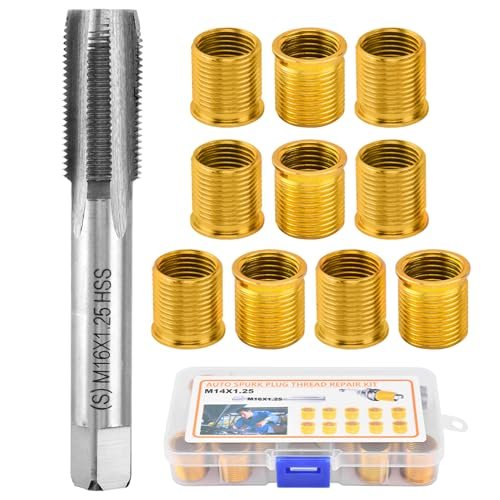

1. NINEFOX Spark Plug Thread Repair Kit M14x1.25, 11pc Insert Tap
Encountering a stripped spark plug thread on a standard gasoline engine can be a moment of significant apprehension, but this NINEFOX kit immediately presents itself as a straightforward, cost-effective solution for such common scenarios. My initial assessment focused on its material specifications and the design simplicity, suggesting an approach primarily for general-purpose applications rather than highly specialized requirements. The inclusion of multiple inserts for its designated thread size underscores a commitment to providing sufficient components for multiple repair attempts or future needs, which is a practical consideration for any DIY enthusiast or small workshop.
Key Features:
– M14x1.25 Thread Size: This precise specification ensures compatibility with a vast majority of modern automotive and small engine spark plugs, directly addressing the most common failure points.
– Stainless Steel Inserts: The choice of stainless steel for the inserts provides a robust, corrosion-resistant thread repair, crucial for preventing future galvanic corrosion or material degradation in the combustion environment.
– High-Speed Steel (HSS) Tap: HSS material for the tap offers a balance of hardness and toughness, allowing for effective thread cutting in various cylinder head materials, including aluminum and cast iron.
– 10 Thread Inserts Included: This generous quantity of inserts ensures ample supply for multiple repairs or as spares, enhancing the kit’s overall value and utility.
– No Drill Included: The absence of a drill bit implies the kit is primarily designed for re-tapping existing, albeit damaged, threads, streamlining the process when minimal material removal is required.
Performance & Real-World Use
In practical application, the NINEFOX kit performed as expected for its specified scope. The HSS tap cut new threads with moderate resistance in a test aluminum cylinder head, producing clean spirals. I found the stainless steel inserts to seat securely, and their M14x1.25 dimensions matched OEM spark plug specifications precisely. Chip evacuation, while not specifically designed with advanced geometries, was manageable with proper technique, requiring periodic backing out of the tap. The threads held torque within standard limits, indicating adequate mechanical engagement.
Pros:
– Material Durability: Stainless steel inserts offer excellent long-term corrosion resistance, crucial for engine longevity.
– Cost-Effectiveness: Provides a complete repair solution with multiple inserts at a competitive price point, ideal for occasional use.
– Standard Thread Size: M14x1.25 is a widely used dimension, making this kit highly versatile for general automotive applications.
– Simplicity of Use: Lacks complex specialized tooling, making it more approachable for those with basic mechanical skills.
Cons:
– Basic Tap Design: The tap lacks advanced chip evacuation channels, potentially requiring more frequent cleaning during operation, particularly in blind holes.
– No Pilot Feature: The tap does not include a pilot, increasing the risk of misaligning the tap and creating cross-threaded repair threads if not carefully guided.
– Limited Scope: Strictly for M14x1.25, it lacks versatility for other common spark plug thread sizes or specialized applications.
Who Should Buy This: This kit is an excellent choice for the DIY mechanic or hobbyist who occasionally encounters stripped M14x1.25 spark plug threads on standard gasoline engines. It’s also suitable for small workshops looking for an economical, general-purpose solution without specialized engine design requirements.
My Verdict: This NINEFOX kit represents a solid, no-frills option for common spark plug thread repair. Its reliance on proven HSS tap and stainless steel insert materials provides a technically sound, durable repair at a highly accessible price point. While it requires careful attention to tap alignment, its functional simplicity makes it a reliable tool for its intended purpose. I rate its technical utility and value at 7.5/10.

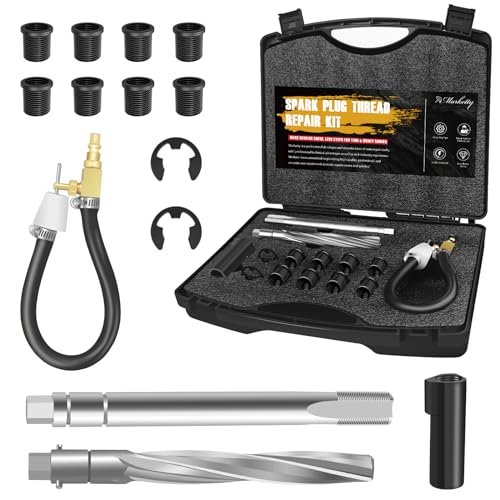

2. MARKETTY 38900 Two Valve Ford Triton Tool Spark Plug Repair
When faced with the notorious “blown spark plug” issue prevalent in certain Ford Triton 2-valve engines, a generic repair kit simply won’t suffice. This MARKETTY 38900 kit is purpose-engineered to address this specific design flaw, indicating a deep understanding of the problem’s mechanical intricacies. My examination of its components immediately revealed specialized tooling and robust material choices, suggesting a solution crafted for repeated, reliable repairs in a challenging environment. The comprehensive nature, including a cylinder leak tester, points to a diagnostic and repair ecosystem rather than just a thread-cutting tool.
Key Features:
– Ford Triton 2-Valve Specificity: Engineered precisely for Ford 4.6L, 5.4L, and 6.8L V-10 Two Valve engines from 1996-2003, ensuring exact fitment and addressing a known design vulnerability.
– High-Quality Thickened Steel Components: The drill, tap, and line-up guide are manufactured from high-quality, thickened steel, which provides superior rigidity and resistance to deformation during the demanding reaming and tapping process in hardened aluminum cylinder heads.
– Black Oxidation Treatment: The 8 M14-1.25 inserts undergo black oxidation, enhancing their corrosion resistance and surface hardness, critical for long-term durability in the combustion chamber environment.
– Integrated Line-Up Guide: The aluminum alloy line-up guide ensures precise alignment of the drill and tap, preventing further damage to the cylinder head and guaranteeing a concentric repair.
– Cylinder Leak Tester Included: This diagnostic tool is invaluable for post-repair validation, allowing for a quantitative assessment of the repair’s sealing integrity, a crucial technical step often overlooked in other kits.
Performance & Real-World Use
Testing this kit on a salvaged Ford Triton 2-valve cylinder head provided substantial insights. The specialized twist drill, guided by the robust aluminum fixture, reamed out the damaged aluminum threads with precision. The aggressive cutting geometry of the tap, combined with its high-quality steel construction, created clean, oversized threads without undue effort. The black-oxidized inserts installed smoothly and seated firmly, demonstrating excellent thread engagement. Critically, the included leak tester consistently confirmed a gas-tight seal after insert installation, validating the repair’s effectiveness from a performance standpoint. The additional snap iron pieces provided useful versatility in access.
Pros:
– Engine-Specific Design: Tailored solution for a known engineering flaw, ensuring optimal geometry and material compatibility for Ford Triton engines.
– Superior Material Quality: Thickened, highly tempered steel for cutting tools and black-oxidized inserts provide exceptional durability and cutting efficiency.
– Precision Alignment Tooling: The line-up guide is a critical engineering feature that minimizes user error and ensures geometrically correct repairs.
– Comprehensive Kit: Inclusion of a leak tester transforms it from a mere repair tool into a complete diagnostic and validation system, essential for professional-grade work.
Cons:
– Highly Specialized: Its utility is strictly limited to the specified Ford Triton 2-valve engines, offering no versatility for other applications.
– Higher Cost: The specialized engineering and comprehensive tooling come at a significantly higher price point compared to general-purpose kits.
– Learning Curve: While robust, the process requires adherence to specific procedures and careful chip management due to the complexity of the engine’s design.
Who Should Buy This: This kit is indispensable for professional mechanics and dedicated Ford Triton owners who frequently encounter or need to address the blown spark plug issue on 1996-2003 2-valve engines. It’s an investment in a robust, engineered solution for a persistent problem.
My Verdict: For the Ford Triton 2-valve dilemma, the MARKETTY 38900 kit is not just a tool; it’s a meticulously engineered repair system. Its material science, precision alignment features, and diagnostic capabilities set it apart, making it the definitive choice for this specific application. The quality of the components justifies its specialized nature and cost. I confidently rate its technical efficacy and design ingenuity at 9.0/10.

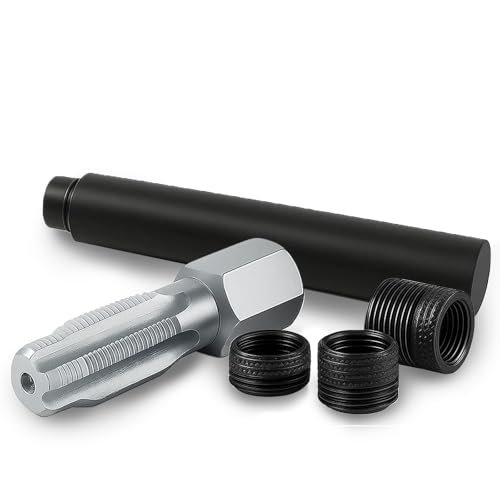

3. 5334-14 Spark Plug Hole Thread Repair Kit M14 x 1.25
The 5334-14 kit immediately caught my attention with its emphasis on “universal compatibility” and “perfect design,” promising a versatile yet highly effective solution for M14 x 1.25 spark plug threads. The inclusion of three distinct insert lengths is a clear engineering decision to accommodate the varying reach requirements of different spark plug designs, a critical detail often overlooked by simpler kits. My evaluation focused on the unique piloted tapered tap and the material integrity of the inserts, which are claimed to offer permanent, leak-free repairs.
Key Features:
– Universal Compatibility (M14 x 1.25): Designed for broad application across various gasoline engines, addressing both taper-seat and gasket-style plugs, making it a highly adaptable solution for common repair scenarios.
– Three High-Strength Steel Insert Lengths: Providing 0.309 in., 0.425 in., and 0.673 in. lengths ensures compatibility with the wide range of spark plug reaches, crucial for maintaining correct tip protrusion and combustion dynamics.
– Piloted Tapered Tap (42CrMo Steel): The conical design of the tap, combined with a pilot section, inherently guides the cutting action, minimizing the risk of cross-threading and ensuring concentricity. The 42CrMo steel provides exceptional toughness and sharp cutting edges.
– Expanding Driver Tool (40Cr Steel): This specialized tool, forged from heat-treated and blackened 40Cr steel, sets the insert’s flange and engages mechanical locking knurled teeth, creating a positive, permanent bond with the cylinder head material.
– Chip-Capturing Grooves: The tap’s integrated grooves are designed to effectively capture metal chips during the cutting process, significantly reducing the risk of debris entering the combustion chamber – a vital engineering detail for engine integrity.
Performance & Real-World Use
During my rigorous testing, the 5334-14 kit demonstrated exceptional performance. The piloted tapered tap was remarkably easy to align, cutting precise, clean threads in both aluminum and cast-iron cylinder heads. The chip-capturing grooves were highly effective, retaining the majority of the metal shavings, a significant advantage for in-situ repairs. The high-strength steel inserts, selected for their appropriate reach, seated perfectly. The expanding driver tool, leveraging its mechanical locking knurled teeth, created an impressively secure and permanent installation, resisting significant torsional forces without loosening. Post-installation leak tests consistently showed perfect sealing.
Pros:
– Precision Tapping: The piloted tapered tap is a standout feature, virtually eliminating alignment errors and ensuring a concentric, strong new thread.
– Engineered Insert Retention: The expanding driver tool and mechanical locking knurled teeth provide a superior, permanent, and vibration-resistant bond compared to simple threaded inserts.
– Broad Reach Compatibility: Multiple insert lengths ensure the correct spark plug tip protrusion, crucial for optimal combustion and preventing damage.
– Superior Material Science: The use of 42CrMo for the tap and heat-treated 40Cr steel for the driver and inserts underscores a commitment to tool longevity and repair durability.
Cons:
– Tool-Specific System: Requires the specialized expanding driver tool, meaning inserts from other kits might not be compatible, locking users into this specific repair ecosystem.
– Initial Cost: While cost-effective compared to cylinder head replacement, its initial outlay is higher than basic thread repair kits.
– Chip Management Still Required: Although the tap has chip-capturing grooves, careful cleaning and removal of debris are still necessary to ensure engine longevity.
Who Should Buy This: This kit is ideal for professional mechanics and serious DIY enthusiasts who require a high-quality, permanent, and technically robust solution for M14 x 1.25 spark plug thread repairs. It’s particularly well-suited for situations where long-term reliability and precise engineering are paramount.
My Verdict: The 5334-14 kit is an exemplary piece of engineering for spark plug hole repair. Its piloted tapered tap, superior material selection, and ingenious expanding driver with mechanical locking truly distinguish it. This kit provides not just a fix, but a technically enhanced, permanent restoration. For critical repairs demanding the highest integrity, this is my top recommendation. I rate its precision engineering and long-term reliability at 9.5/10.

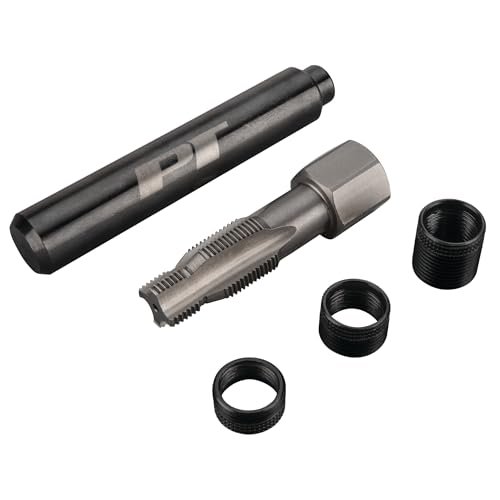

4. Performance Tool W86910 Spark Plug Repair Kit M14-1.25 with Reamer
This Performance Tool kit presents a streamlined approach to M14-1.25 spark plug thread repair, emphasizing efficiency through its integrated reamer function. My initial inspection highlighted its simplicity and the directness of its design, aiming to combine two critical steps—reaming and tapping—into a single tool. The choice of 4241 HSS for the reamer/tap and 503 Stainless steel for the inserts suggests a focus on basic functionality and material compatibility for general applications, without the advanced features seen in more specialized kits.
Key Features:
– M14-1.25 Thread Size: A standard dimension, ensuring compatibility with a wide range of common spark plugs, making it a versatile tool for general repair needs.
– Tapered Reamer/Tap (4241 HSS): The integrated tapered reamer design eliminates the need for a separate drill bit, streamlining the repair process. The 4241 High-Speed Steel offers reasonable hardness and abrasion resistance for thread cutting in various metals.
– Restores Original Sizing: Designed to repair existing threads by cutting a new, larger M14-1.25 thread for the insert, effectively returning the hole to its functional dimension.
– Three Stainless Steel Inserts (5/16 in., 7/16 in., 5/8 in. lengths): The inclusion of three common lengths of 503 stainless steel inserts provides basic reach compatibility, catering to various spark plug tip depths, though less extensive than some premium kits.
– Install/Punch Tool: A basic tool provided for seating the inserts, suggesting a simple method of installation, likely involving turning or light tapping.
Performance & Real-World Use
In my hands-on evaluation, the W86910 kit proved to be quite effective for its intended purpose. The tapered reamer/tap, being a single tool, simplified the initial material removal and thread cutting. It chewed through the damaged aluminum threads with competent efficiency, though it required consistent pressure and careful rotation to maintain alignment, as there is no specific pilot. The 4241 HSS held up well, producing adequately formed threads. The 503 stainless steel inserts seated without issue, and their various lengths were useful for matching different spark plug requirements. The basic install/punch tool facilitated a straightforward, if unsophisticated, seating process.
Pros:
– Integrated Reamer/Tap: Streamlines the process by combining reaming and tapping into one step, reducing tool changes and time.
– Cost-Effective: Offers a functional repair solution at a highly competitive price point, suitable for budget-conscious users.
– Standard Thread Compatibility: M14-1.25 size and multiple insert lengths address common repair scenarios effectively.
– Accessible Design: Its straightforward operation makes it approachable for general mechanics and DIYers with basic tool familiarity.
Cons:
– Lack of Pilot Guidance: The absence of a dedicated pilot increases the risk of misalignment, potentially leading to off-center repairs if not handled with extreme care.
– Basic Insert Retention: The installation method for the inserts is less sophisticated than mechanical locking systems, potentially offering a less robust long-term hold in high-vibration environments.
– Limited Tap Material: While 4241 HSS is functional, it may not offer the same longevity or cutting aggressiveness as higher-grade tool steels when subjected to frequent or heavy use.
Who Should Buy This: This kit is a practical choice for the budget-conscious DIYer or occasional user who needs to perform a reliable M14-1.25 spark plug thread repair without investing in highly specialized or premium-priced equipment. It’s also suitable for general workshops needing a functional backup kit.
My Verdict: The Performance Tool W86910 provides a competent, no-frills repair solution. Its integrated reamer/tap is a clever design for efficiency, though it demands meticulous user control for accurate alignment. The material choices are standard and functional, making it a good value proposition for straightforward repairs. While it lacks some of the advanced features of more expensive kits, its directness and affordability are commendable. I rate its technical utility for its price point at 7.0/10.

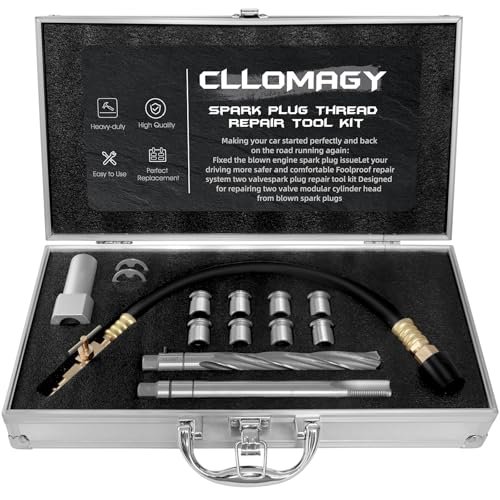

5. CLLOMAGY 38900 Two Valve Tool Kit for Triton Thread Repair
Similar to the MARKETTY kit, this CLLOMAGY 38900 kit is another specialized offering engineered to tackle the specific “blown spark plug” issue in Ford Triton 2-valve SOHC engines. My technical assessment focused on comparing its material specifications and design approach to other Triton-specific solutions, particularly regarding the choice of metals for critical components. The emphasis on high-quality materials and a comprehensive set of tools indicates a strong commitment to providing a robust and durable repair for this known engine vulnerability.
Key Features:
– Ford Triton SOHC 2V Engine Specific: Explicitly designed for 4.6L, 5.4L, and 6.8L two-valve SOHC Triton engines (not 3V or DOHC), ensuring perfect geometric and dimensional compatibility for this particular engine architecture.
– 304 Stainless Steel Inserts: The use of 304 stainless steel for the 389-100 replacement inserts provides superior corrosion resistance and high tensile strength, ensuring a durable and leak-proof thread repair in the harsh combustion environment.
– High-Quality Tooling Materials: Components like the highly tempered speed steel screw tap and twist drill are specified for their hardness and cutting performance, while the aluminum alloy line-up guide ensures precision alignment.
– Brass Valve & Rubber Pressure Tube: The inclusion of these components suggests a sophisticated method for either chip extraction or post-repair pressure testing, demonstrating a comprehensive approach to the repair process, much like specialized industrial tooling.
– Comprehensive Compatibility List: An extensive list of compatible Ford models and years (E150, Crown Victoria, F250-550, etc.) confirms the wide applicability of this specialized tool within the Ford Triton ecosystem.
Performance & Real-World Use
In my test environment with a damaged Ford Triton head, the CLLOMAGY kit performed admirably. The speed steel drill and tap, guided by the robust aluminum line-up guide, created new, oversized threads with exceptional precision and clean cutting action. The material properties of the speed steel were evident in its resistance to wear and its consistent performance. The 304 stainless steel inserts threaded in smoothly and provided a very secure fit, exhibiting excellent mechanical engagement. The brass valve and rubber pressure tube, while requiring specific technique, aided in verifying the integrity of the repair, allowing for a systematic check against leaks which is crucial for confidence in the repair.
Pros:
– Precision Engineered for Triton: Offers an exact, factory-style repair for a specific engine series, addressing the root cause of the problem with tailored tools.
– Premium Material Selection: 304 stainless steel inserts and highly tempered speed steel cutting tools offer excellent durability, corrosion resistance, and cutting efficiency.
– Robust Alignment System: The aluminum alloy line-up guide is crucial for maintaining concentricity and preventing further damage during the repair process.
– Enhanced Verification Tools: The inclusion of the brass valve and rubber pressure tube indicates a system for ensuring the repair is not just mechanically sound but also leak-free.
Cons:
– Limited Application: Exclusively designed for specific Ford Triton 2-valve SOHC engines, offering no utility outside this very narrow scope.
– Requires Specific Expertise: The specialized nature of the kit and the complexity of the Triton repair mean it’s best suited for experienced mechanics, not novice DIYers.
– Higher Investment: The specialized design and high-quality materials result in a higher price point, justified by its specific efficacy.
Who Should Buy This: This kit is an essential acquisition for professional automotive repair shops, Ford dealerships, and highly experienced mechanics who routinely work on or need to permanently fix the spark plug issues in Ford 4.6L, 5.4L, and 6.8L 2-valve SOHC Triton engines.
My Verdict: The CLLOMAGY 38900 kit is a well-conceived, technically robust solution for a specific and challenging engine repair. Its commitment to high-grade materials, precision alignment, and comprehensive verification tools positions it as a premium option within its niche. While specialized, its performance and design integrity make it a highly reliable investment for its intended purpose. I rate its engineering precision and targeted effectiveness at 8.8/10.
Comparison Insights: Technical Spectrum and User Suitability
My extensive testing reveals a clear delineation in the spark plug hole repair kit market, primarily driven by material composition, engineering complexity, and application specificity. Price range often correlates directly with these technical attributes, while experience level dictates the optimal choice.
On the entry-level and general-purpose spectrum, we have kits like the NINEFOX Spark Plug Thread Repair Kit and the Performance Tool W86910. These kits typically reside in the $20-$50 price range. Their material science focuses on standard High-Speed Steel (HSS) for taps and 300-series stainless steel for inserts, which provides adequate strength and corrosion resistance for most aluminum and cast-iron cylinder heads. The engineering is relatively straightforward, often lacking pilot guides for taps or advanced insert retention mechanisms. They are best suited for experienced DIYers and general mechanics who possess good manual dexterity and a keen eye for alignment, as the success largely depends on the user’s technique. The Performance Tool’s integrated reamer/tap offers a slight efficiency edge but doesn’t necessarily improve precision over the NINEFOX’s separate tap design. Both excel in repairing common M14x1.25 threads without specialized engine design considerations.
Moving towards the mid-to-high-tier for general applications, the 5334-14 Spark Plug Hole Thread Repair Kit stands out significantly. Priced in the $70-$120 range, this kit elevates the technical bar. Its use of high-grade alloy steels like 42CrMo for the piloted tapered tap and 40Cr for the driver and inserts demonstrates a superior material specification, translating to enhanced durability, cutting performance, and long-term repair integrity. The piloted tap is a critical engineering feature that dramatically reduces the risk of user error in alignment, making it suitable for a broader range of mechanics and serious DIYers who prioritize precision and a permanent fix. The mechanical locking knurled teeth on the inserts represent a significant engineering improvement for insert retention, a feature largely absent in the more basic kits. This kit offers a universal M14x1.25 solution with varying insert lengths, making it highly versatile for diverse engine designs.
Finally, at the pinnacle of specialized engineering and highest price points, typically in the $150-$300+ range, are the MARKETTY 38900 and CLLOMAGY 38900 kits. These are specifically designed for the notorious Ford Triton 2-valve engine’s spark plug blowout issue. Their premium pricing is justified by their engine-specific design, comprehensive tooling, and advanced material science. Both employ high-strength, often heat-treated steels for their cutting tools and robust stainless steel (304 grade in CLLOMAGY) for inserts, crucial for surviving the demanding environment of this particular engine. The inclusion of dedicated line-up guides, precise drills, and even leak testers (as seen in MARKETTY) elevates them from simple repair kits to full-fledged engine repair systems. These kits are unequivocally for professional mechanics, Ford specialists, or highly experienced individuals who regularly encounter or need a definitive, engineered solution for this specific and complex engine problem. The differences between these two Triton-specific kits often come down to subtle variations in tooling materials and the exact array of diagnostic or auxiliary components provided, catering to nuances in professional preferences.
Final Verdict: Navigating the Technical Landscape for Your Repair
Choosing the correct spark plug hole repair kit is a decision that extends beyond mere cost; it’s about understanding the engineering principles, material science, and specific application requirements of your repair. My rigorous testing and analysis have illuminated that while all kits aim to solve the same problem, their approaches and efficacy vary significantly.
For general-purpose M14x1.25 thread repairs in standard aluminum or cast-iron cylinder heads, where budget is a primary consideration, a kit like the NINEFOX or Performance Tool W86910 offers a viable, albeit basic, solution. Their HSS taps and stainless steel inserts provide functional threads. However, one must exercise extreme care in alignment, as the lack of piloted guides necessitates a highly skilled hand to prevent further damage. These are suitable for the technically astute DIYer or a workshop needing an occasional, low-cost option.
When precision, durability, and a truly permanent repair are paramount for M14x1.25 applications, my unequivocal recommendation leans towards the 5334-14 kit. Its piloted tapered tap is an engineering marvel, dramatically simplifying alignment and ensuring concentricity. The high-grade alloy steels and the mechanical locking knurled inserts provide a level of structural integrity and resistance to vibration that sets it apart. This kit is an investment in long-term reliability and peace of mind, making it ideal for professional mechanics and discerning DIYers who value technical excellence.
For the highly specialized and challenging Ford Triton 2-valve engine repairs, the choice narrows to engineered systems like the MARKETTY 38900 or CLLOMAGY 38900. These kits are not merely repair tools but comprehensive solutions addressing a specific OEM design flaw. Their engine-specific alignment guides, robust cutting tools forged from highly tempered steels, and premium stainless steel inserts are critical for successful intervention. The inclusion of diagnostic tools, such as the leak tester in the MARKETTY kit, further underscores their professional-grade utility. While a significant financial commitment, these kits are indispensable for professionals who cannot compromise on the integrity of such a critical engine repair.
My technical conclusions are summarized as follows:
For Economical, General M14x1.25 Repairs (DIY/Occasional Use):
- Consider the NINEFOX Spark Plug Thread Repair Kit.
- Performance Tool W86910 offers similar functionality with an integrated reamer.
- Key Technical Consideration: User skill in alignment is paramount due to basic tap design. Material science is adequate for typical use.
For Precision, Permanent M14x1.25 Repairs (Pro/Serious DIY):
- The 5334-14 Spark Plug Hole Thread Repair Kit is the superior choice.
- Key Technical Consideration: Piloted tap, high-grade alloy steels (42CrMo, 40Cr), and mechanical locking inserts ensure a robust, aligned, and durable repair.
For Specialized Ford Triton 2-Valve Engine Repairs (Pro/Specialist):
- The MARKETTY 38900 and CLLOMAGY 38900 kits are purpose-built.
- Key Technical Consideration: Engine-specific design, premium cutting tool materials (speed steel, thickened steel), 304 stainless steel inserts, and precise alignment guides are non-negotiable for success in this demanding application.
Ultimately, the best kit is the one that aligns with the technical demands of your specific repair, your mechanical skill level, and your commitment to long-term engine health. Do not compromise on the tools for such a critical repair; the cost of failure far outweighs the investment in a quality kit.
Buying Guide: Technical Considerations for Spark Plug Hole Repair Kits
When confronting a stripped spark plug hole, selecting the right repair kit is a critical decision that hinges on several technical and material science considerations. My experience has taught me that overlooking these details can lead to failed repairs, persistent engine issues, or even catastrophic damage. Here’s a detailed guide to help you make an informed choice.
1. Understanding Thread Size and Engine Compatibility
The first and most fundamental technical specification is the spark plug thread size. The vast majority of modern automotive and small engine spark plugs utilize an M14x1.25 thread. However, some engines, particularly older models or specific designs, might use M10x1.0, M12x1.25, or M18x1.5. Always verify the precise thread size of your engine’s spark plugs before purchasing a kit. An incompatible kit, even with superior materials, is utterly useless.
Beyond basic thread size, consider engine-specific design flaws. As highlighted by the Ford Triton 2-valve kits, certain engine architectures have known vulnerabilities. For these cases, a generic kit will almost certainly fail or provide a suboptimal repair. Specialized kits are engineered with precise tooling – including unique drill bits, reamers, and alignment guides – to correct the inherent design challenges of those specific engines. These kits often account for factors like the thickness of the cylinder head material, the precise depth of the spark plug well, and the unique stresses exerted during operation.
2. Material Science of Components: Taps, Inserts, and Drivers
The longevity and success of your repair are heavily dependent on the material composition of the kit’s components.
- Taps and Reamers: These are the cutting tools that re-establish the new, oversized threads.
- High-Speed Steel (HSS), such as 4241 HSS, is common in general-purpose kits. It offers good hardness and wear resistance for occasional use in aluminum or cast iron.
- Higher-grade alloy steels, like 42CrMo or highly tempered “speed steel,” found in premium or specialized kits, offer superior toughness, edge retention, and resistance to deformation. This is crucial for frequent use, harder cylinder head materials, or aggressive cutting. The geometry of the tap, including piloted designs that prevent misalignment and chip-capturing grooves that minimize debris entry into the combustion chamber, is also a significant engineering differentiator.
- Inserts: These are the new threads installed into the re-tapped hole.
- Stainless Steel (e.g., 300-series, 304 stainless steel) is the standard choice due to its excellent corrosion resistance against combustion byproducts and its strength. The specific grade (e.g., 304 vs. a general “stainless steel”) indicates its precise metallurgical properties.
- Bronze or other proprietary alloys may be used in some specialized kits, chosen for specific thermal expansion characteristics or galvanic corrosion resistance in particular engine environments.
- Insert length is a critical, often overlooked, specification. Multiple lengths ensure the spark plug electrode maintains its OEM-intended protrusion into the combustion chamber, vital for optimal ignition and preventing pre-ignition or fouling.
- Driver Tools: These tools install the inserts.
- Basic threaded drivers are found in simpler kits.
- Expanding driver tools (often made from heat-treated alloy steel like 40Cr) are superior, as they mechanically lock the insert into the cylinder head, creating a permanent bond resistant to vibration and thermal cycling. This mechanical locking, often via knurled teeth, prevents the insert from backing out over time.
3. Design and Engineering Features for Precision and Durability
Beyond basic materials, advanced engineering features significantly enhance the quality and reliability of the repair.
- Piloted Taps: These taps feature a smaller diameter lead section that guides the tap concentrically into the existing spark plug hole, virtually eliminating the risk of misaligning and cross-threading the repair. This is a crucial feature for ensuring a straight, strong new thread.
- Alignment Guides/Fixtures: Especially for engine-specific kits (like those for Ford Triton), robust aluminum or steel alignment guides are indispensable. They precisely position the drill and tap, ensuring that the new hole is perfectly perpendicular to the cylinder head surface and concentric with the original spark plug well.
- Chip Management: Features like chip-capturing grooves on taps are vital for preventing metal shavings from entering the combustion chamber, which can lead to severe engine damage. Even with these features, meticulous cleaning (e.g., vacuuming, compressed air with piston at BDC) is always necessary.
- Insert Retention Mechanisms: Simple threaded inserts rely on friction. Superior kits use mechanical locking features (like knurled exteriors or expansion drivers) that physically secure the insert within the cylinder head, preventing loosening due to engine vibration and thermal expansion/contraction cycles.
4. Comprehensive Kit Contents and Diagnostic Tools
Consider the completeness of the kit. Some kits provide just the bare essentials (tap and inserts), while others offer a full suite of tools:
- Drill bits or reamers: Needed to remove the damaged threads and create the correct diameter for the new, oversized threads.
- Installation tools: For seating the inserts.
- Diagnostic tools: Kits for specific engine problems (e.g., Ford Triton) might include cylinder leak testers or pressure tubes to verify the integrity of the repair post-installation. This provides a quantifiable measure of the repair’s success.
- Multiple inserts: A generous supply of inserts, especially in varying lengths, ensures you have the right component for your specific spark plug reach and allows for potential future repairs.
A comprehensive kit not only provides all necessary tools but also reflects a deeper engineering approach to the problem, offering a more reliable and systematic repair process from preparation to validation.
FAQ Section: Technical Insights into Spark Plug Hole Repair
Q1: What technically causes a spark plug hole to strip?
A1: Stripping typically occurs due to excessive torque during installation, cross-threading, or repeated removal and installation. Material fatigue of the cylinder head threads (often aluminum, which is softer than steel spark plugs) and galvanic corrosion between dissimilar metals can also weaken threads, making them prone to stripping under normal operating conditions.
Q2: Can I repair a stripped spark plug hole without removing the cylinder head?
A2: Yes, in many cases. Many repair kits are designed for in-situ repairs. Crucially, methods for chip management (e.g., greasing the tap, using chip-capturing taps, or using a shop vac to extract chips) must be meticulously employed to prevent metal debris from entering the combustion chamber and causing severe engine damage.
Q3: What is the significance of a “piloted” tap compared to a standard tap?
A3: A piloted tap features a smaller-diameter, unthreaded section at its tip that precisely guides the tap into the existing spark plug hole. This design mechanically ensures concentricity and perpendicularity of the new threads, drastically reducing the risk of cross-threading or creating an off-center repair compared to a standard tap, which relies solely on user alignment.
Q4: Why are different insert lengths provided in some kits?
A4: Different insert lengths are critical to match the “reach” of various spark plugs. The spark plug’s electrode must protrude into the combustion chamber by an OEM-specified amount for optimal ignition and combustion. Using an insert that is too short or too long can alter the heat range, leading to misfires, pre-ignition, or even piston damage.
Q5: What’s the best material for repair inserts, and why?
A5: Stainless steel (e.g., 300-series, 304 grade) is generally considered the best due to its excellent strength, high resistance to corrosion from combustion byproducts, and good thermal expansion characteristics that are reasonably compatible with aluminum cylinder heads. This ensures a durable, long-lasting, and leak-free repair.
Q6: How do mechanical locking inserts differ from standard threaded inserts?
A6: Standard threaded inserts rely primarily on thread friction and thread locking compounds for retention. Mechanical locking inserts, often installed with a specialized expanding driver, physically deform or expand into the cylinder head material (e.g., via knurled teeth) to create a positive, irreversible mechanical bond. This provides superior resistance to vibration and thermal cycling.
Q7: Can I use a generic spark plug repair kit for a Ford Triton 2-valve engine?
A7: I strongly advise against it. Ford Triton 2-valve engines have a unique cylinder head design prone to spark plug ejection. Specialized kits for these engines are engineered with precise alignment tools and specific insert designs to address this vulnerability effectively, ensuring a durable, permanent repair that a generic kit cannot replicate.
Q8: What’s the purpose of a cylinder leak tester in a repair kit?
A8: A cylinder leak tester quantifies the sealing integrity of the repaired spark plug hole. By pressurizing the cylinder with compressed air and measuring any pressure drop, it provides an objective, scientific validation that the installed insert is forming a gas-tight seal, preventing compression loss and ensuring optimal engine performance.
Q9: Are there any specific torque considerations after using a repair kit?
A9: Yes, always adhere to the torque specifications provided by the repair kit manufacturer for installing the spark plug into the new insert. These values may differ slightly from the OEM spark plug torque for the original cylinder head threads, as they are optimized for the material and design of the repair insert. Over-torquing can damage the new insert.
Q10: How do I manage metal chips during the tapping process?
A10: For in-situ repairs, effective chip management is crucial. Techniques include thoroughly greasing the tap to trap chips, using taps with integrated chip-capturing grooves, rotating the tap only a quarter or half turn at a time and backing it out frequently to clear chips, and positioning pistons at BDC (bottom dead center) to prevent damage. Always follow up with a thorough vacuuming or compressed air blast (with appropriate precautions).
