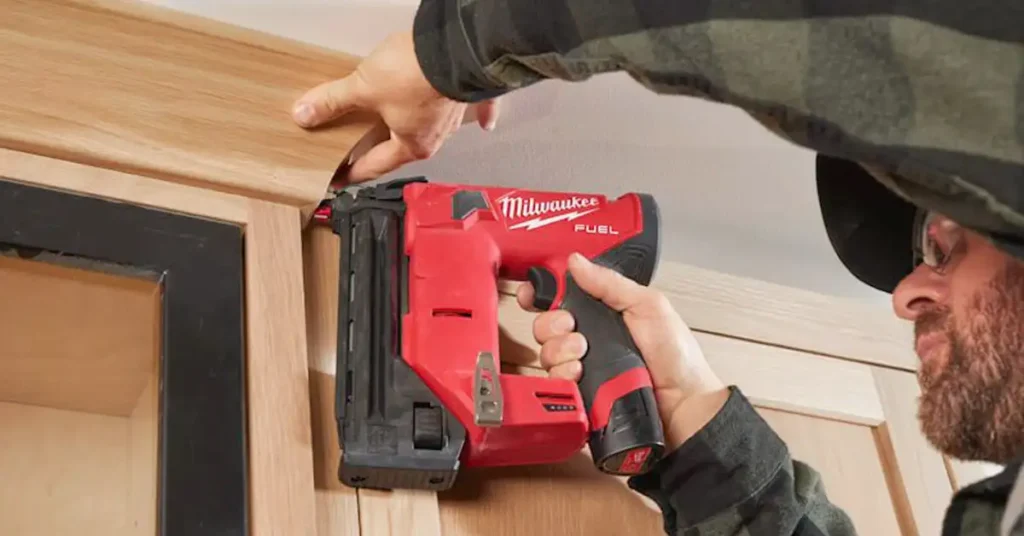

Milwaukee 18 Gauge Brad Nailer Not Working – Quick Solutions

The first time my Milwaukee 18 gauge brad nailer quit, I thought something major broke inside. I pushed the trigger, heard a weak click, and then nothing. I tried again. Still nothing. At that moment I felt the same panic most people feel when a tool stops mid-task.

But as I started to check the tool step by step, I saw the issue was not as dramatic as it felt. These nailers are tough, but like any tool, they get moody. A weak battery, a small jam, a mode change, or a bit of dust can shut everything down.

So here I want to share my full experience. What went wrong. How I fixed it. And how you can do the same.

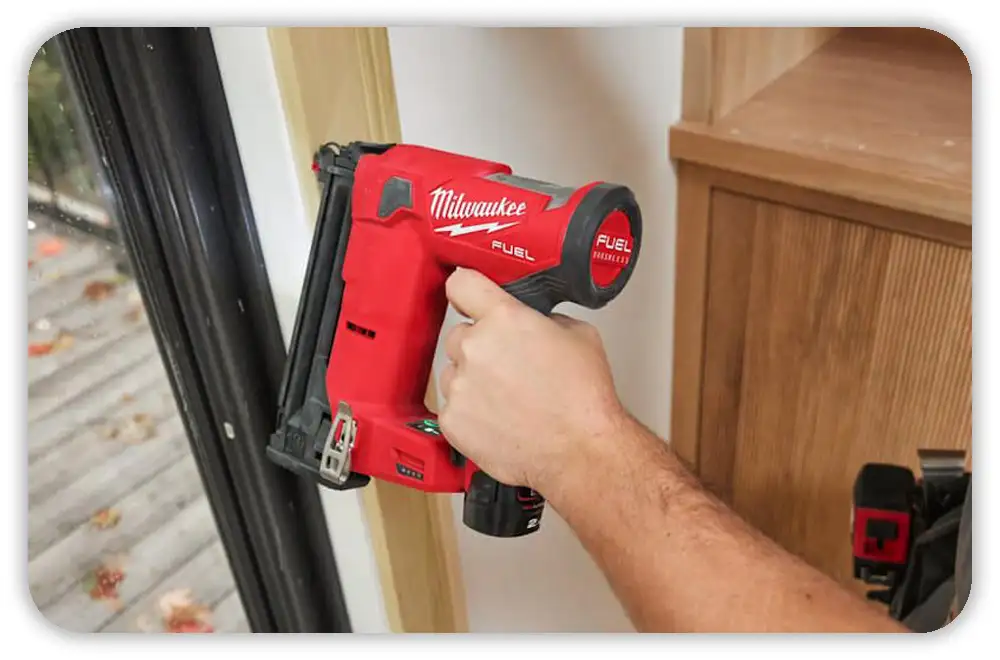

Quick Safety Check

Before I touched anything, I pulled the battery out. I learned this the hard way. Years ago, I tried fixing a different nailer without removing the battery. It fired while I was clearing a jam, and it scared the life out of me.

Now I take a slow approach. I remove the battery. I drop the magazine open. I clear the nails out. Then I check the nose of the tool. When I started doing this, I noticed so many small issues I missed before. A bit of dust. A tiny bent brad. A stuck driver.

Battery Problems

Most of the “milwaukee 18 gauge brad nailer not working” cases I faced turned out to be battery-related. And honestly, I blamed the tool before I blamed the battery, which was a mistake.

One time, my battery showed power, but it did not have enough juice to cycle the piston. The nailer acted dead. No error. No red light. Just silence. I swapped in a fresh M18 battery, and the tool woke right up.

I also found dust on the battery contacts more than once. USA jobsites, especially outdoor ones, get dusty fast. When that dust settles on contacts, the tool cannot read the battery well. A simple wipe fixed it.

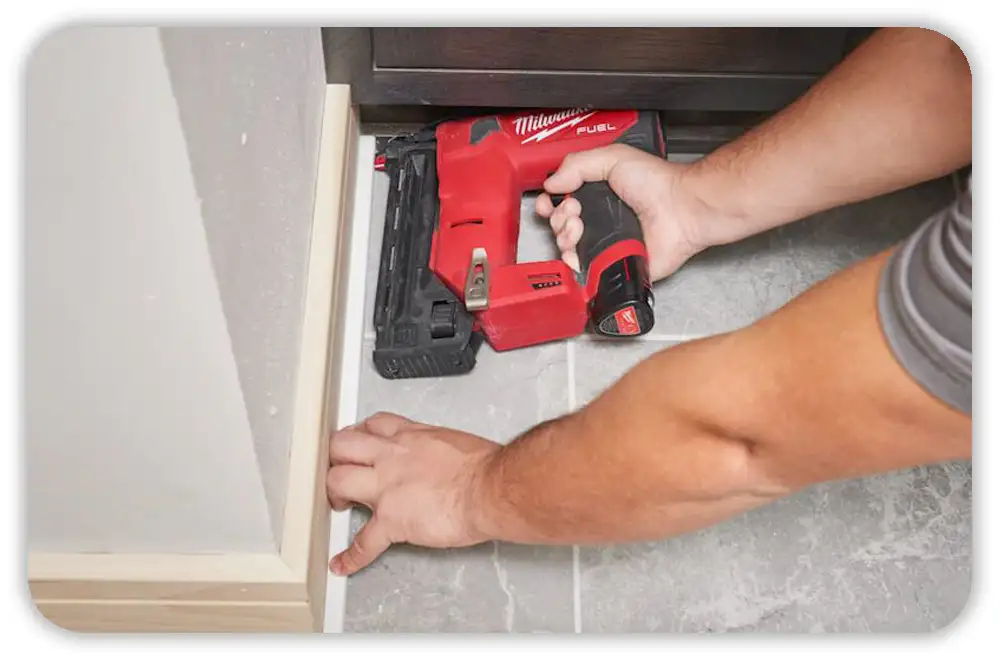

Nail Feeding & Magazine Issues

A big chunk of my frustration came from feeding issues. I had a batch of cheap nails that bent easily. One of those nails turned sideways inside the magazine and jammed the whole thing. It took less than a second to jam and several minutes to clean up.

I also learned how much the magazine spring matters. If the spring does not push the nails forward smooth enough, the brad will not reach the firing point. The tool will look “dead” but it’s actually waiting for the next nail.

In the USA, I noticed many contractors stick to consistent nail brands. It cuts down on feeding issues. After switching to straighter, cleaner brads, my magazine stayed smooth.

Depth & Mode Misalignment

This one annoyed me because it made me feel silly. I thought the tool was broken when the real issue was the depth setting. The depth dial was set way too low. The tool fired, but the brads sat on top of the wood. It felt like a misfire even though the piston worked fine.

Another time, I forgot I had the tool in sequential mode. I kept tapping it like bump mode was still on. No shot. Just a soft click. When I switched modes, the nailer fired like normal.

Internal Component Issues

The Milwaukee 18 gauge brad nailer uses a sealed air system inside. Even without a hose, it still depends on clean airflow to drive the piston. When dust builds up or cold weather hits, things get slow.

I work a lot in colder temps in the USA, and cold days always make the tool feel stiff. The piston moves slower. The cycle time feels off. I once thought the tool was broken, but it just needed to warm up.

Dust is another villain. A thin layer around the nose area or driver path can block movement. A quick clean with a brush or canned air made mine feel brand new.

Jam Removal Steps

When the tool jams, it acts strange. Sometimes it makes a faint click. Sometimes it feels like the driver is stuck halfway.

When I open the front latch, I always move slow. I don’t want to bend the driver blade. I pull out the jammed brad with small pliers, then check the driver to make sure it moves clean. If the driver sticks, I clean the path until it feels free again.

Cleaning & Maintenance Routine

After going through all these issues, I picked up a simple routine that saves me hours. I dust the magazine. I clean the nose area. I check the depth wheel. I wipe the battery contacts.

This takes maybe two minutes. But the difference is huge. My brad nailer feels smooth, and the misfires are rare now.

A little maintenance goes a long way, especially on busy USA jobsites where dust, cold, and long workdays push tools hard.

When It’s Time for Professional Repair

There were times when I knew I hit the limit. If the driver blade is bent, the nailer misfires every few shots, or the electronics stop reading the battery, then it’s not a DIY fix.

One of my older nailers had a sensor issue that I could not solve at home. The shop handled it fast. So don’t feel bad if you reach that point. Some repairs need pro tools and parts.

Final Thoughts

When your Milwaukee 18 gauge brad nailer is not working, it can feel like the whole project hits a wall. But most of the problems I faced came from small things. A tired battery. A stuck brad. A mode change. Some dust.

Once you walk through the tool step by step, you start to see the real cause. And once you fix it, the nailer feels strong again.

I hope sharing my experience helps you get your tool back in action faster and with a lot less stress.
