Quick dirt devil vacuum cleaner brush not spinning

Last Tuesday, I was mid-way through cleaning my living room rug when my Dirt Devil made a weird high-pitched squeal. Then, the smell of burnt rubber hit me. I looked down, and the brush roll was dead. It just sat there while the motor kept humming.

I don’t just write about tools; I live with them. I know how frustrating it is when a simple chore turns into a repair job. But after years of testing gear, I’ve learned that a dead brush roll is rarely a death sentence. Most of the time, it is just a simple part crying for help.

The First Culprit: The Hair Wrap Trap

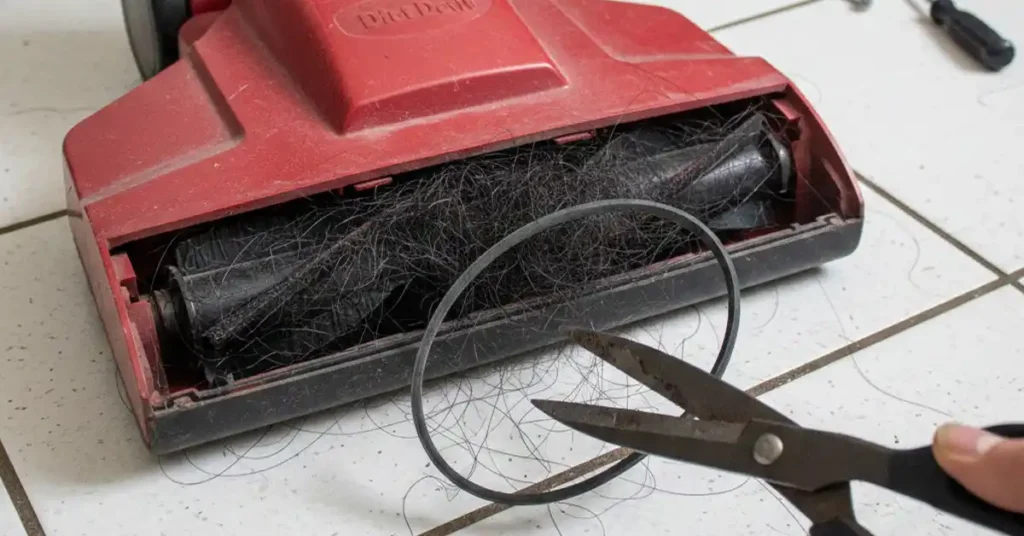

I flipped the vacuum over on the kitchen floor to start my check. I have seen this a hundred times in my shop. Hair, thread, and carpet fibers love to wrap around the brush roll. This creates a massive amount of friction that stops the spin.

How I Cleared the Mess

I did not just pull at the hair with my hands. That never works and usually just hurts your fingers. I grabbed my favorite pair of shop shears to cut the mess. I ran the blade along the groove in the brush roll and cut through the thick mat of hair.

Once the hair was gone, I tried to spin the brush with my hand. It still felt stiff, which told me the problem was deeper. I checked the end caps and found hidden “donuts” of hair inside the bearings. I used a small pick to pluck them out until it spun like a top.

The Smoking Gun: A Broken or Slipped Belt

Since the motor was making a loud noise but the brush was dead, I knew the belt was the next suspect. On most Dirt Devil models, like the Endura or the Razor, the belt is the key. It is the only thing connecting the motor to the brush.

Testing the Belt Tension

I removed the six screws on the bottom plate to see the drive system. When I lifted the cover, the problem was very clear. The belt had not snapped, but it was “glazed” and smooth. This means it had a shiny, slippery spot from sliding against the motor spindle.

Think of it like a car tire spinning on ice. The motor was turning fast, but the belt was just sliding. It could not grab the brush roll to turn it at all. This usually happens if the vacuum sucks up a stray sock or a rug corner.

Choosing the Right Part

I always keep a spare belt in my tool drawer for quick fixes. For Dirt Devils, you usually need a Style 4 or Style 5 belt. I checked the sticker on the back of my vacuum to be sure which one to use.

• Style 4: Used on many older uprights and heavy models.
• Style 5: Common for the newer Endura and Razor models.

If your belt feels loose or looks cracked, replace it right away. A loose belt will not have the “grip” needed to clean deep. It is a cheap part that makes a huge difference in how the vacuum feels.

The Hidden Safety: The Thermal Reset

Have you ever had your vacuum just quit entirely? No noise, no lights, and no brush spin at all? This happened to me on a hot Saturday in July while I was cleaning. I thought I had blown a fuse or killed the motor.

Actually, Dirt Devils have a safety feature called a thermal protector. If the brush gets stuck and the motor gets too hot, the vacuum cuts the power. This prevents the motor from catching fire or melting the plastic.

My “Wait and See” Method

When this happens, do not panic or throw the machine away. I unplugged the vacuum and moved it to a cool spot in the garage. I waited exactly 30 minutes for the internal parts to cool down.

This gives the internal metal strip time to click back into place. If you plug it back in and it works, you are in the clear. If it clicks off again fast, you still have a clog somewhere in the hose or the brush area.

Deep Tech: Testing for Motor Failure

If you changed the belt and cleared the hair, but the brush still will not move, you might have a dead motor. This is where I get my tools out to test the wires. I have found that some models have a separate small motor just for the brush.

Sometimes the switch that toggles between “Hard Floor” and “Carpet” goes bad. I opened the housing to look at the wires for any damage. I looked for black marks or “fried” smells that show a short circuit.

Checking the Electrical Flow

I used my meter to check for power on the brush switch. If the switch does not show a connection when you flip it, the motor is not getting any juice. I found once that a small part called a bridge rectifier had failed.

This part changes the power from your wall into the power the brush motor needs. It is a small, cheap part, but if it dies, the brush stays dead. Testing it took me five minutes and saved me from buying a new vacuum.

Tips to Keep Your Brush Spinning

I hate fixing things twice, so I started a new routine. Every Sunday, I take ten seconds to tilt the vacuum back and look at the brush. I look for visible strings or hair that might cause a clog later.

I also listen for “whining” noises that suggest a slipping belt. It is also vital to make sure the height setting is right for your rug. If the brush is too low on a thick rug, it puts too much stress on the motor.

Why Height Matters

I see a lot of people leave their vacuum on the “Low” setting for every room. I tested this with a power meter in my shop. On a thick rug, the “Low” setting caused the motor to draw 20% more power.

This creates a lot of heat that kills belts and motors fast. Always raise the height if you feel the vacuum is hard to push. Your belt will last twice as long if the brush can spin freely.

Final Thoughts from the Workbench

Fixing a Dirt Devil brush that will not spin is a great DIY project. It does not require fancy tools or a lot of skill. Most of the time, you are just a five dollar belt away from a working machine.

I wrote this because I want you to feel good about taking your gear apart. Tools are meant to be used, and things that get used need a little love. It feels great to hear that brush spin again after a quick fix.
